A Beginners Guide to Call Somatic Mutation

class: center, middle, inverse, title-slide

# A Beginners Guide to Call Somatic Mutation
## Part IV
### Lijia Yu
### 2020/10/05<br/>(updated: 2020-10-05)

---

# Outline

0. Review
2. SNP calling: Mutect2
3. VCF format
4. Annotation: Annovar

---

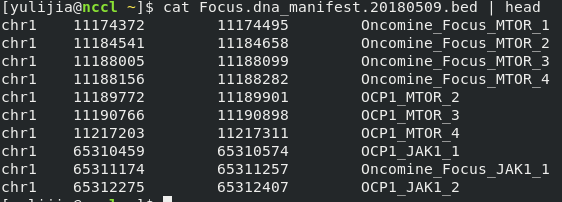

# Target Region BED file

![](./2019-08-16-A_beginners_guide_to_Call_SNPs_and_indels_Part_III_files/figure/BEDformat.png)

- `chrom`: The name of the chromosome (e.g. chr3, chrY, chr2_random) or scaffold (e.g. scaffold10671).
- `chromStart`: The starting position of the feature in the chromosome or scaffold. **The first base in a chromosome is numbered 0.**
- `chromEnd`: The ending position of the feature in the chromosome or scaffold. The chromEnd base is not included in the display of the feature. For example, the first 100 bases of a chromosome are defined as chromStart=0, chromEnd=100, and span the bases numbered 0-99.

.footnote[
[1][BED format](https://genome.ucsc.edu/FAQ/FAQformat.html#format1)
]

---

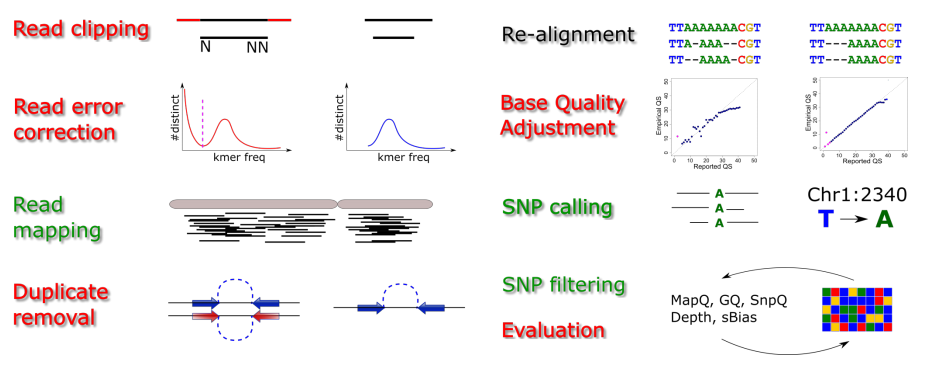

# Workflow

![](./2019-08-16-A_beginners_guide_to_Call_SNPs_and_indels_Part_III_files/figure/Workflow.png)

.footnote[
[1][Hands-on Tutorial on SNP Calling](http://www.transplantdb.eu/sites/transplantdb.eu/files/SNPcallingTutorial-Haberer_010715.pdf)
]

---

# Somatic short variant discovery (SNVs + Indels)

.center[
<img src="./2020-10-05-A_beginners_guide_to_Call_somatic_mutation_Part_IV_files/figure/workflow.png" width="500">
]

.footnote[
[1] [Somatic short variant discovery (SNVs + Indels)](https://gatk.broadinstitute.org/hc/en-us/articles/360035894731-Somatic-short-variant-discovery-SNVs-Indels-)]

---

# Call SNPs and Indels (in our class)

- Somatic SNV and Indels in Solid tumor (not include leukemia)

- Somatic mutation = mutation in tumor tissue but not in normal tissue or blood

- SNP (single nucleotide polymorphism)

- SNV (single nucleotide variant)

- SNA (single-nucleotide alteration)

---

# Make a BAM index file

```bash
samtools index [-bc] [-m INT] aln.bam|aln.cram [out.index]
```

Index a coordinate-sorted BAM or CRAM file for fast random access. (Note that this does not work with SAM files even if they are bgzip compressed — to index such files, use tabix(1) instead.)

This index is needed when region arguments are used to limit samtools view and similar commands to particular regions of interest.

If an output filename is given, the index file will be written to out.index. Otherwise, for a CRAM file aln.cram, index file aln.cram.crai will be created; <u>for a BAM file aln.bam, either aln.bam.bai or aln.bam.csi will be created</u>, depending on the index format selected.

[1][Samtools](http://www.htslib.org/doc/samtools.html)

---

# Mutect2

```bash
gatk --java-options "-Xmx8G" Mutect2 \
-R /home/admin/database/reference/hg19/ucsc.hg19.fasta \
-I ../out/normal_recal.bam \
-I ../out/cancer_recal.bam \
-tumor cancer \
-normal normal \
--germline-resource af-only-gnomad.raw.sites.hg19.vcf.gz \
-L ../in/Illumina.bed \
-O ../out/somatic.vcf.gz
```

---

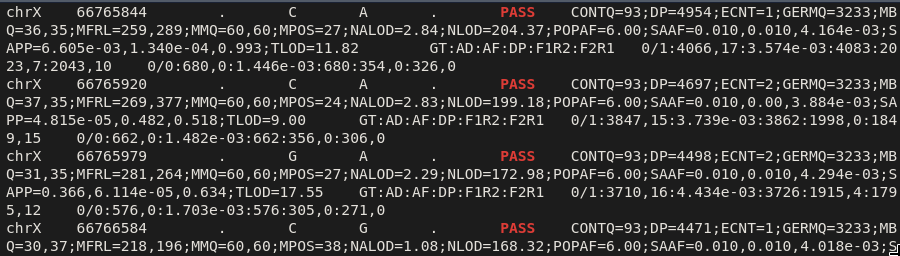

# FilterMutectCalls

```bash
gatk --java-options "-Xmx8G" FilterMutectCalls \
-V ../out/somatic.vcf.gz \
-O ../out/somatic_filtered.vcf.gz
```

![](./2019-08-16-A_beginners_guide_to_Call_SNPs_and_indels_Part_III_files/figure/filter.png)

.footnote[
[1] [Filter somatic SNVs and indels called by Mutect2](https://software.broadinstitute.org/gatk/documentation/tooldocs/4.0.6.0/org_broadinstitute_hellbender_tools_walkers_mutect_FilterMutectCalls.php)
]

---
# VCF format: Meta-information lines

```
##fileformat=VCFv4.0
##fileDate=20090805
##source=myImputationProgramV3.1
##reference=1000GenomesPilot-NCBI36
##phasing=partial
```

File meta-information is included after the ## string, often as key=value pairs.

.footnote[
[1] [VCF (Variant Call Format) version 4.0](https://www.internationalgenome.org/wiki/Analysis/vcf4.0/)
]
---

# VCF format: Meta-information lines

```
##INFO=<ID=NS,Number=1,Type=Integer,Description="NumberOfSamplesWithData">
##INFO=<ID=DP,Number=1,Type=Integer,Description="Total Depth">
##INFO=<ID=AF,Number=.,Type=Float,Description="Allele Frequency">
##INFO=<ID=AA,Number=1,Type=String,Description="Ancestral Allele">
##INFO=<ID=DB,Number=0,Type=Flag,Description="dbSNP membership, build 129">
##INFO=<ID=H2,Number=0,Type=Flag,Description="HapMap2 membership">
```

INFO fields should be described as follows (all keys are required):

```
##INFO=<ID=ID,Number=number,Type=type,Description=”description”>
```

Possible Types for INFO fields are: Integer, Float, Flag, Character, and String.

.footnote[
[1] [VCF (Variant Call Format) version 4.0](https://www.internationalgenome.org/wiki/Analysis/vcf4.0/)
]
---

# VCF format: Meta-information lines

```
##FILTER=<ID=q10,Description="Quality below 10">
##FILTER=<ID=s50,Description="Less than 50% of samples have data">
##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
##FORMAT=<ID=GQ,Number=1,Type=Integer,Description="Genotype Quality">
##FORMAT=<ID=DP,Number=1,Type=Integer,Description="Read Depth">
##FORMAT=<ID=HQ,Number=2,Type=Integer,Description="Haplotype Quality">
```

FILTERs that have been applied to the data should be described as follows:

```
##FILTER=<ID=ID,Description=”description”>
```

Likewise, Genotype fields specified in the FORMAT field should be described as follows:

```
##FORMAT=<ID=ID,Number=number,Type=type,Description=”description”>
```

Possible Types for FORMAT fields are: Integer, Float, Character, and String.

.footnote[
[1] [VCF (Variant Call Format) version 4.0](https://www.internationalgenome.org/wiki/Analysis/vcf4.0/)
]
---

# VCF format: The header line syntax

```
#CHROM POS ID REF ALT QUAL FILTER INFO FORMAT NA00001 NA00002 NA00003
```

The header line names the 8 fixed, mandatory columns. These columns are as follows:

- CHROM
- POS
- ID
- REF
- ALT
- QUAL
- FILTER
- INFO

If genotype data is present in the file, these are followed by a FORMAT column header, then an arbitrary number of sample IDs. The header line is tab-delimited.

.footnote[
[1] [VCF (Variant Call Format) version 4.0](https://www.internationalgenome.org/wiki/Analysis/vcf4.0/)
]
---

# VCF format: Data lines

![](./2019-08-16-A_beginners_guide_to_Call_SNPs_and_indels_Part_III_files/figure/VCF.png)

There are 8 fixed fields per record. All data lines are tab-delimited. In all cases, missing values are specified with a dot (”.”). Fixed fields are:

1.CHROM chromosome: an identifier from the reference genome. All entries for a specific CHROM should form a contiguous block within the VCF file.(Alphanumeric String, Required)
